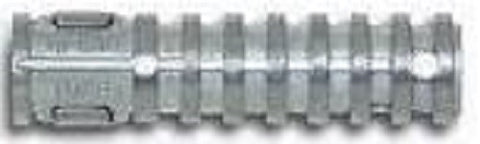

1/4" X 1" Short Lag Screw Shield Anchors | Bulk Box 2000

ProductVariantDrop

Embedment: 1
Hold Weight Concrete 4000 psi: 75 lbs
Hold Weight Block C-90: 45 Lbs
TPI: 20; Drill Size: 1/2
Materials: Concrete, masonry, mortar joint, and brick.

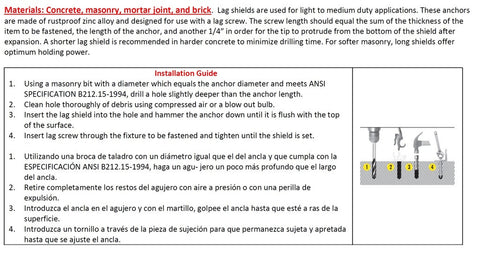

Lag shields are used for light to medium duty applications. These anchors are made of rustproof zinc alloy and designed for use with a lag screw. The screw length should equal the sum of the thickness of the item to be fastened, the length of the anchor, and another 1/4” in order for the tip to protrude from the bottom of the shield after expansion. A shorter lag shield is recommended in harder concrete to minimize drilling time. For softer masonry, long shields offer optimum holding power.
